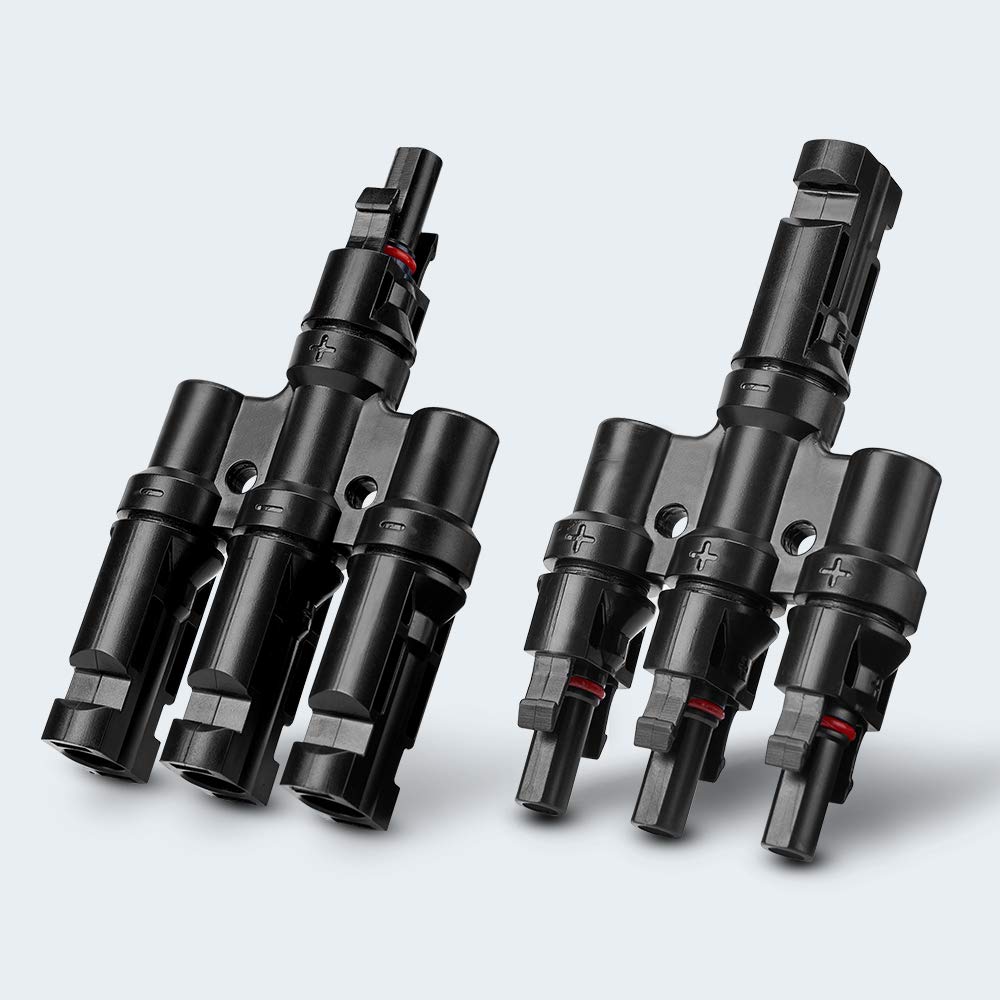

Connect three compatible solar panel leads in parallel with this pair of 3-to-1 T-branch connectors. The set includes one male-to-three-female connector and one female-to-three-male connector for compatible photovoltaic systems.
Key features
• Compatible with 10–14 AWG solar cable and connectors

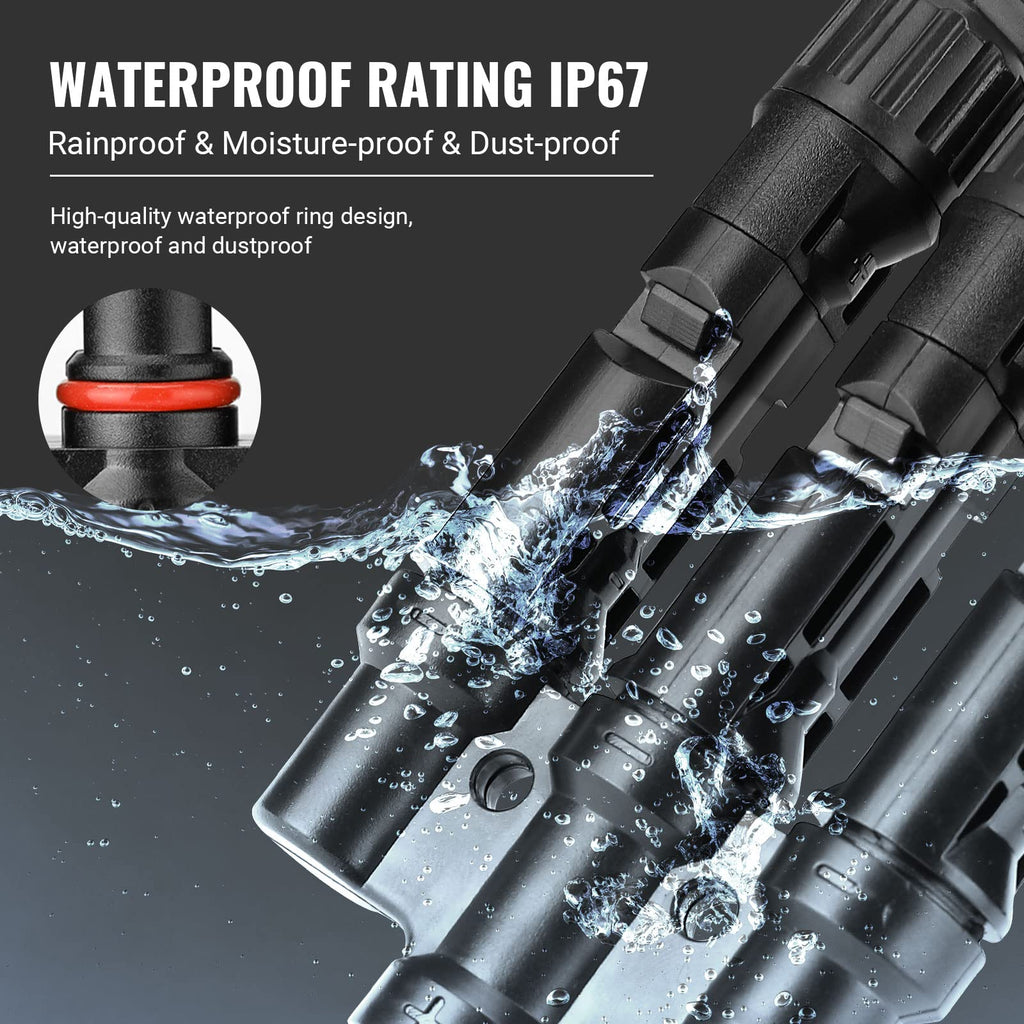

• IP67 sealing ring helps protect against water and dust

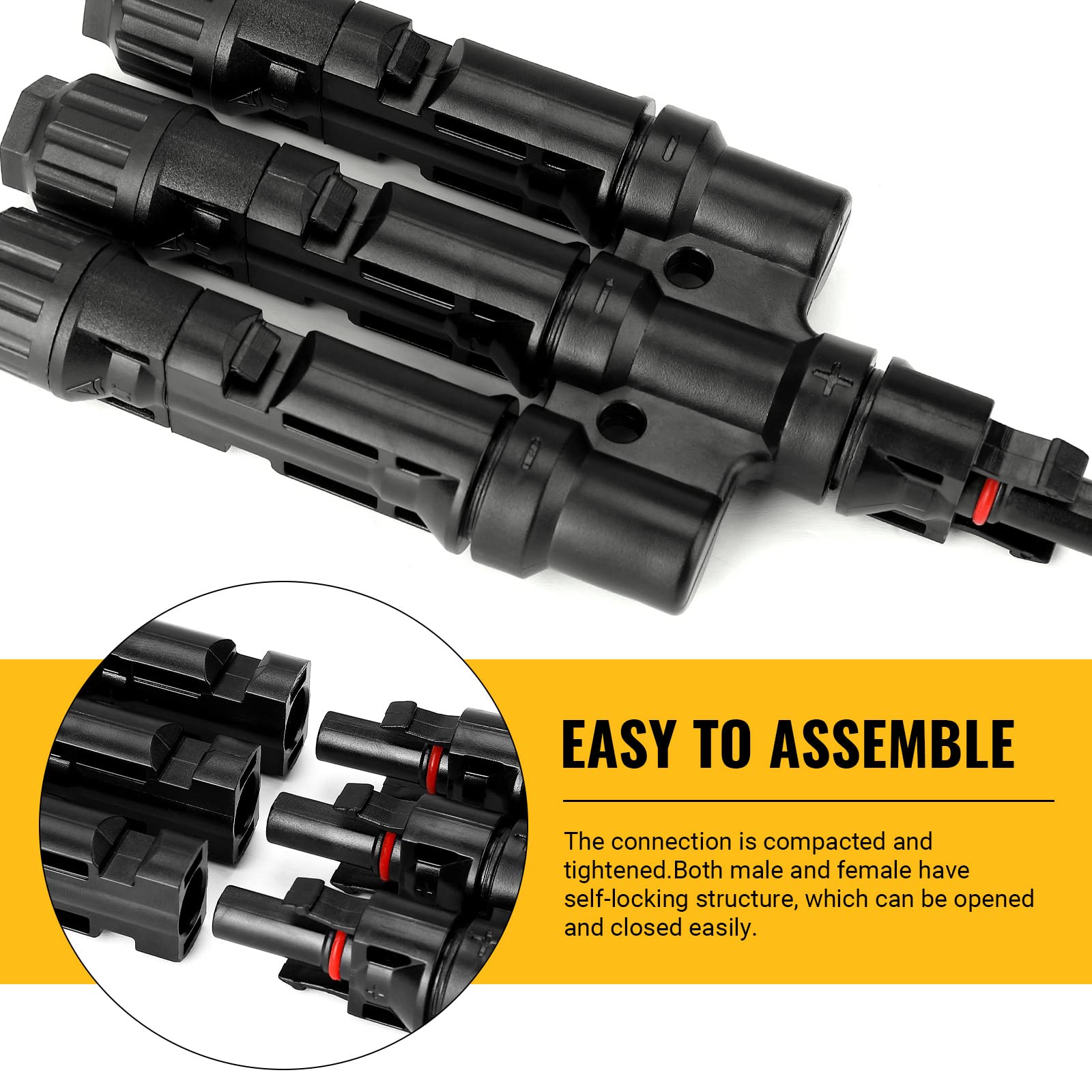

• Self-locking plugs connect and disconnect without special tools

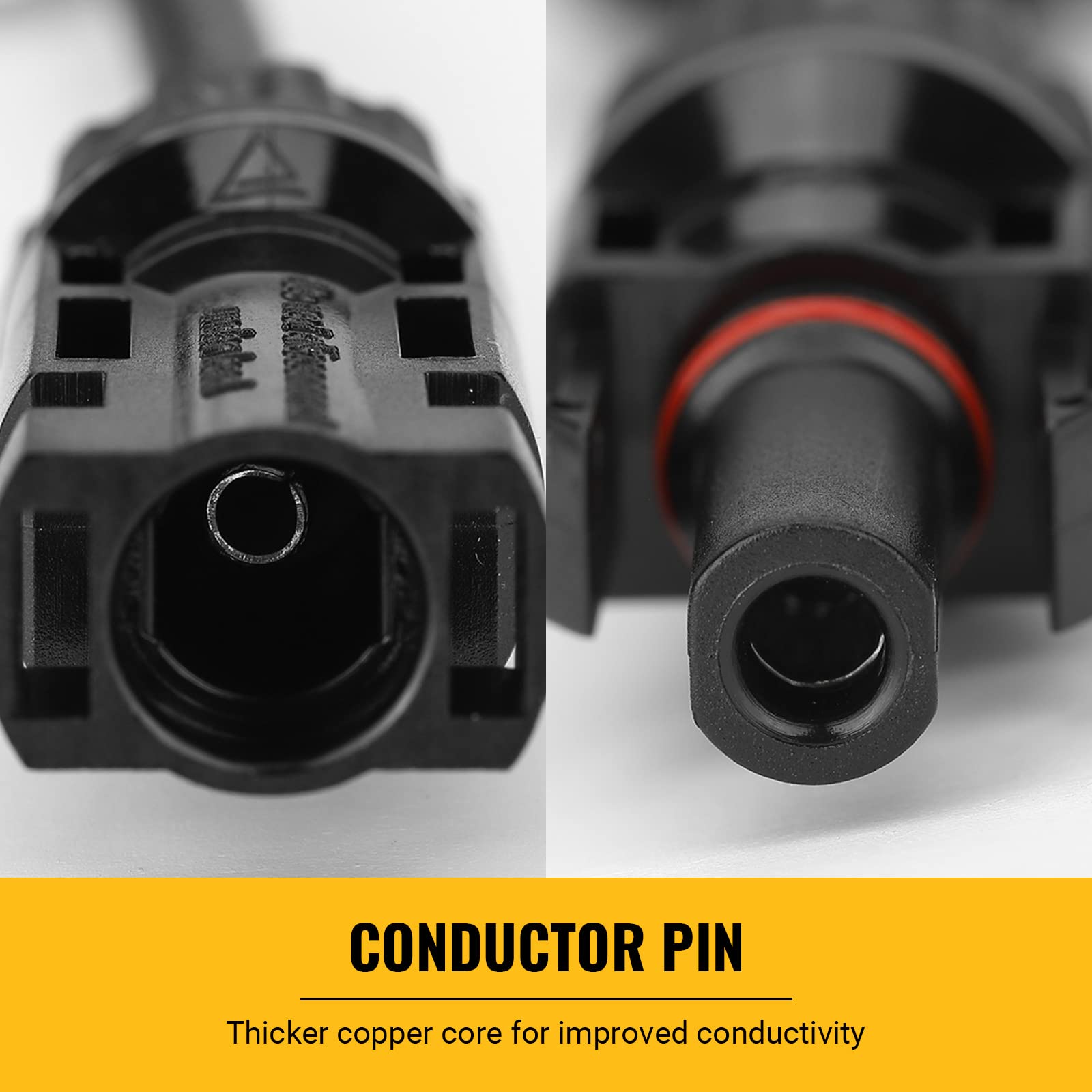

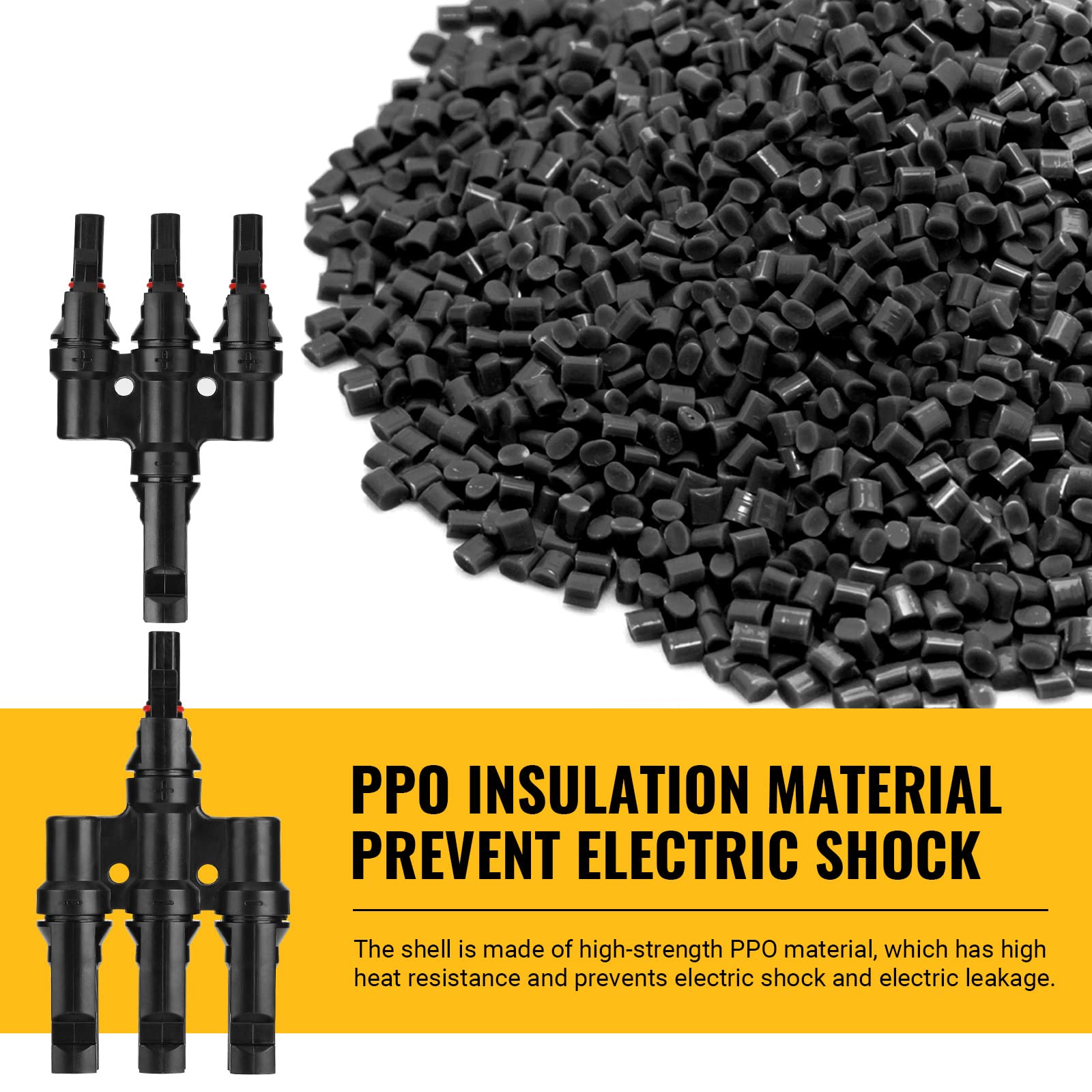

• PPO housing with silver-plated copper contacts
• Operating temperature: -40°C to 90°C

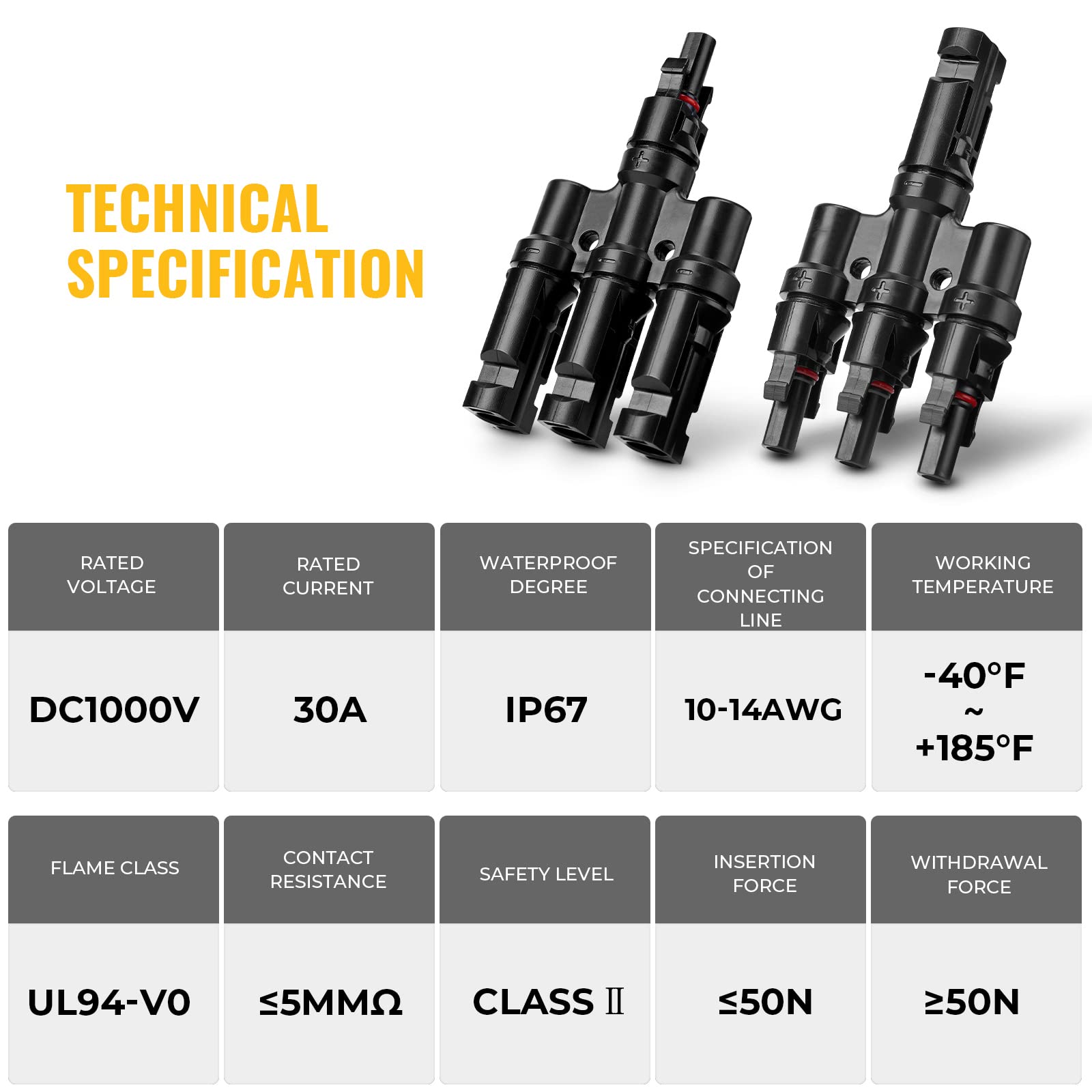

Specifications
• Withstanding voltage: 1000V DC (TUV) / 600V (UL)
• Protection class: Class II
• Flame rating: UL94-V0 or UL94-5VA
• Weight: approximately 74g per connector
Package contents
• 1 x male-to-three-female connector
• 1 x female-to-three-male connector
Check cable, connector and voltage compatibility before installation. Electrical installation should be completed by a suitably qualified person.
