This complete wiring harness and CDI ignition system kit is designed as a replacement electrical assembly for 50–110cc 4-stroke off-road motorcycles, ATVs, and dune buggies (non-GY6 engines).
The kit includes essential ignition and electrical components required for standard system repair or replacement. Colour-coded wiring helps simplify installation and reduce connection errors. Built with durable insulation and copper terminals, the harness is designed for reliable operation in typical off-road conditions.
Suitable for maintenance, repair, or restoration of compatible small-capacity engines.
Features
- Complete ignition and wiring harness kit for 50–110cc 4-stroke models

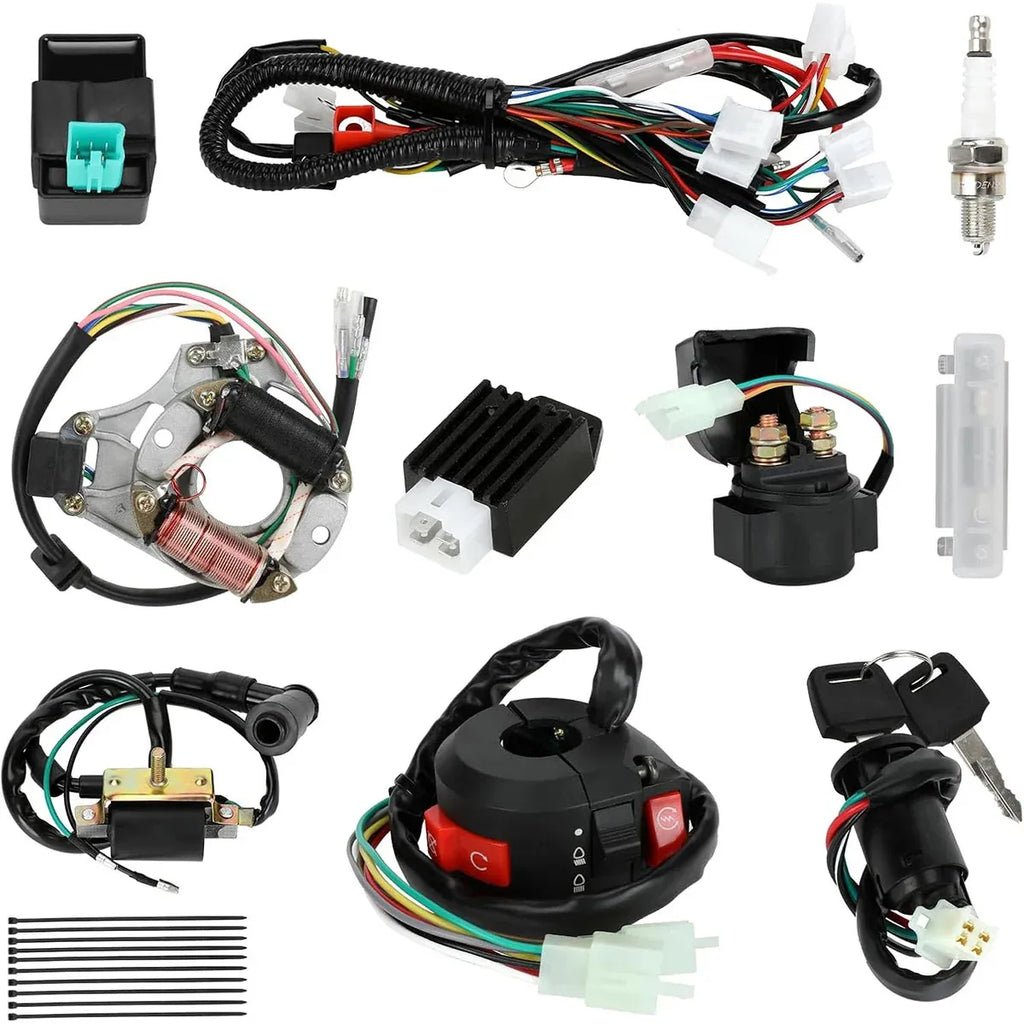

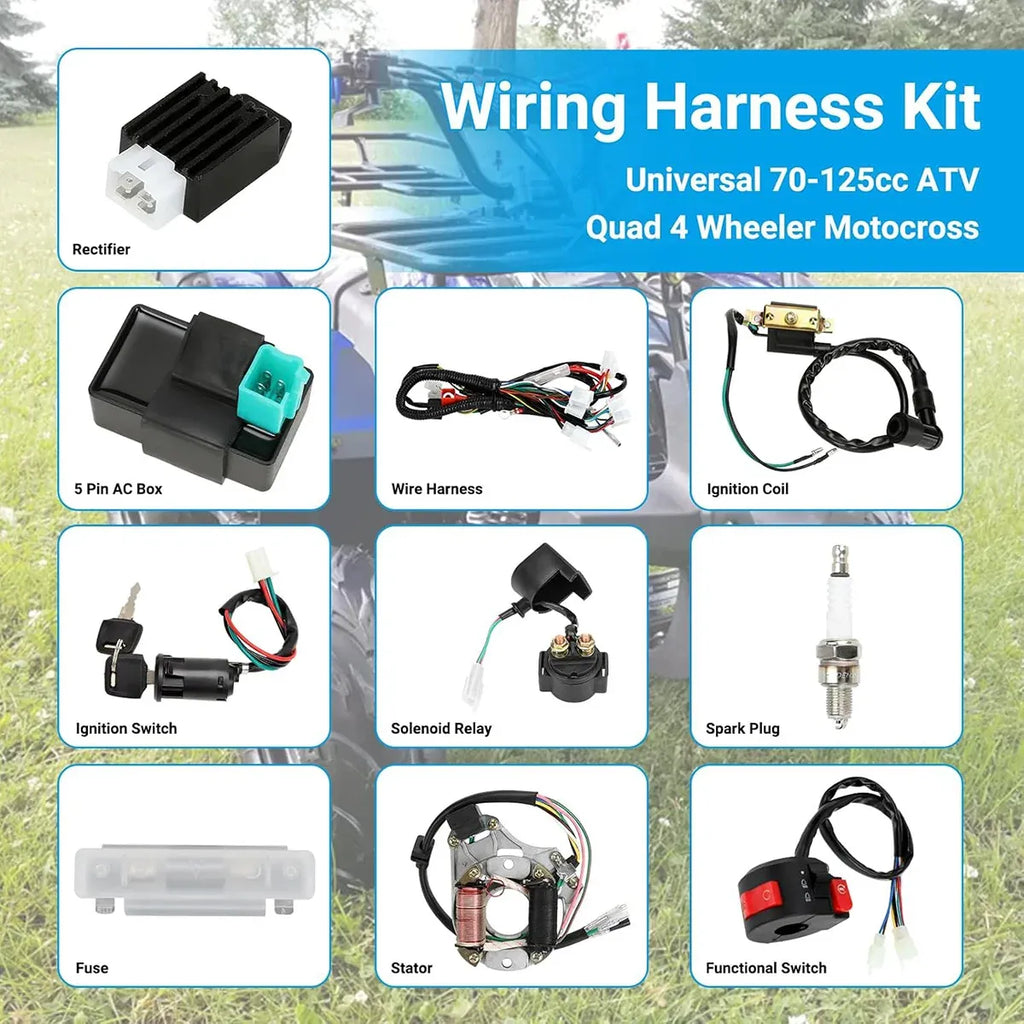

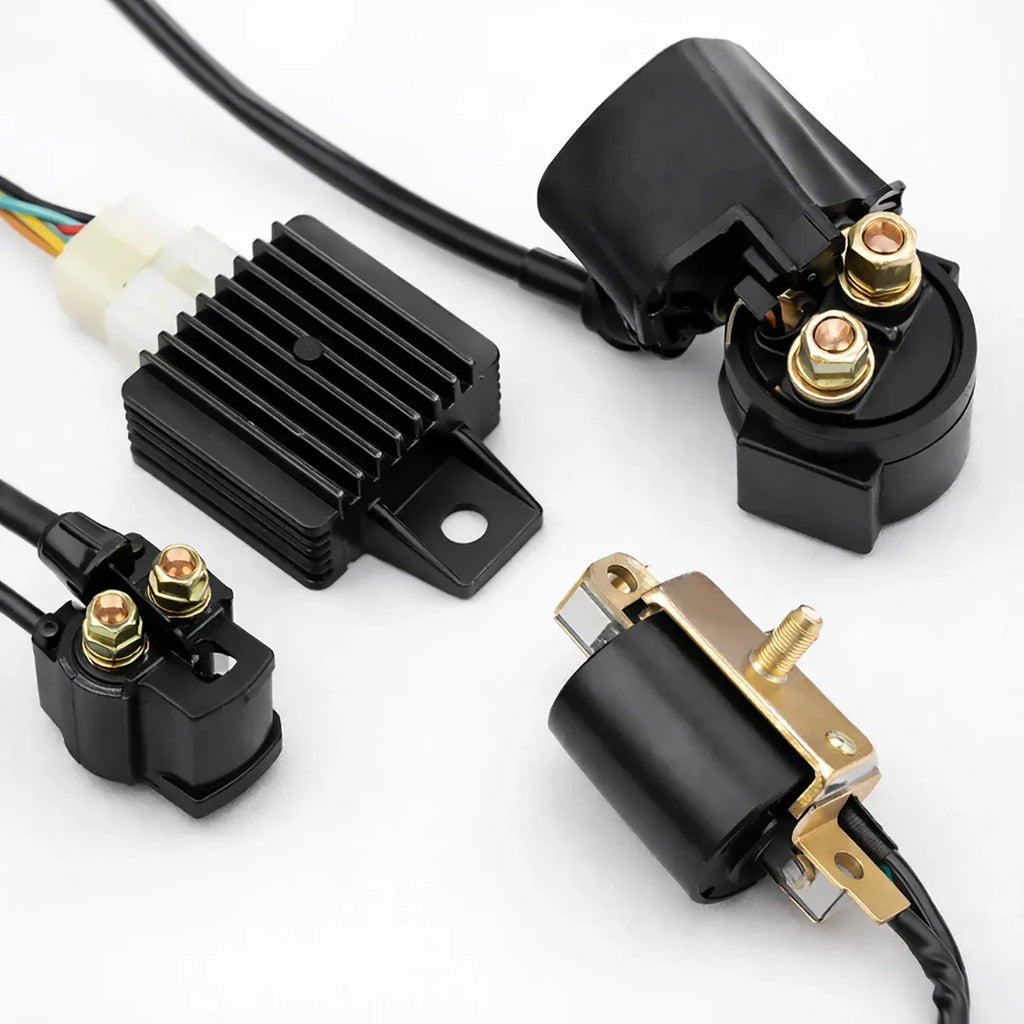

- Includes CDI unit, rectifier, ignition coil, stator, solenoid relay, switch assembly and fuse
- 5-pin AC CDI configuration
- Colour-coded wiring for simplified installation
- Copper terminals with insulated protective sheathing
- Designed for replacement of existing ignition wiring systems
- Weather-resistant construction for general off-road use

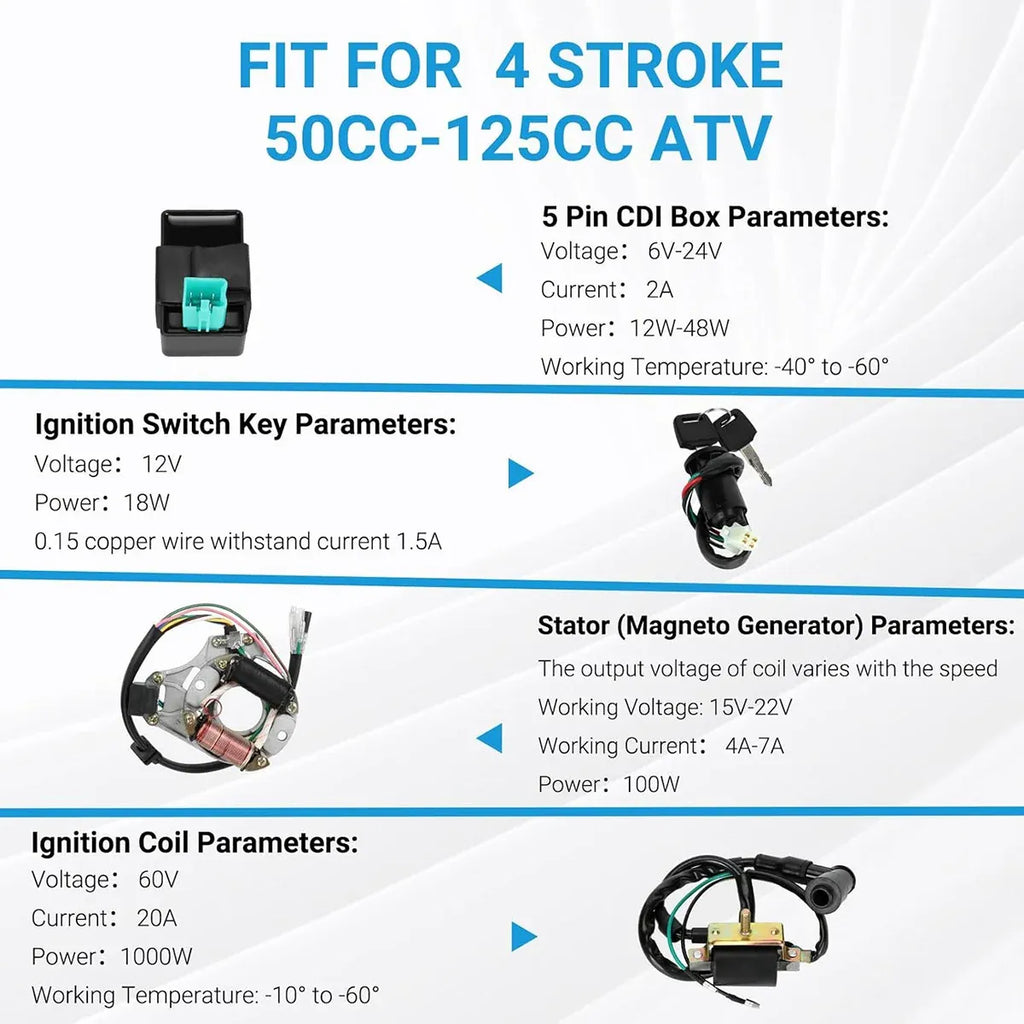

Specifications
- Application: 50–110cc 4-stroke ATV / dirt bike / dune buggy
- Engine Type: Non-GY6 only
- CDI Type: 5-pin AC CDI
- Electrical System: Designed for standard small-engine 12V systems (component dependent)

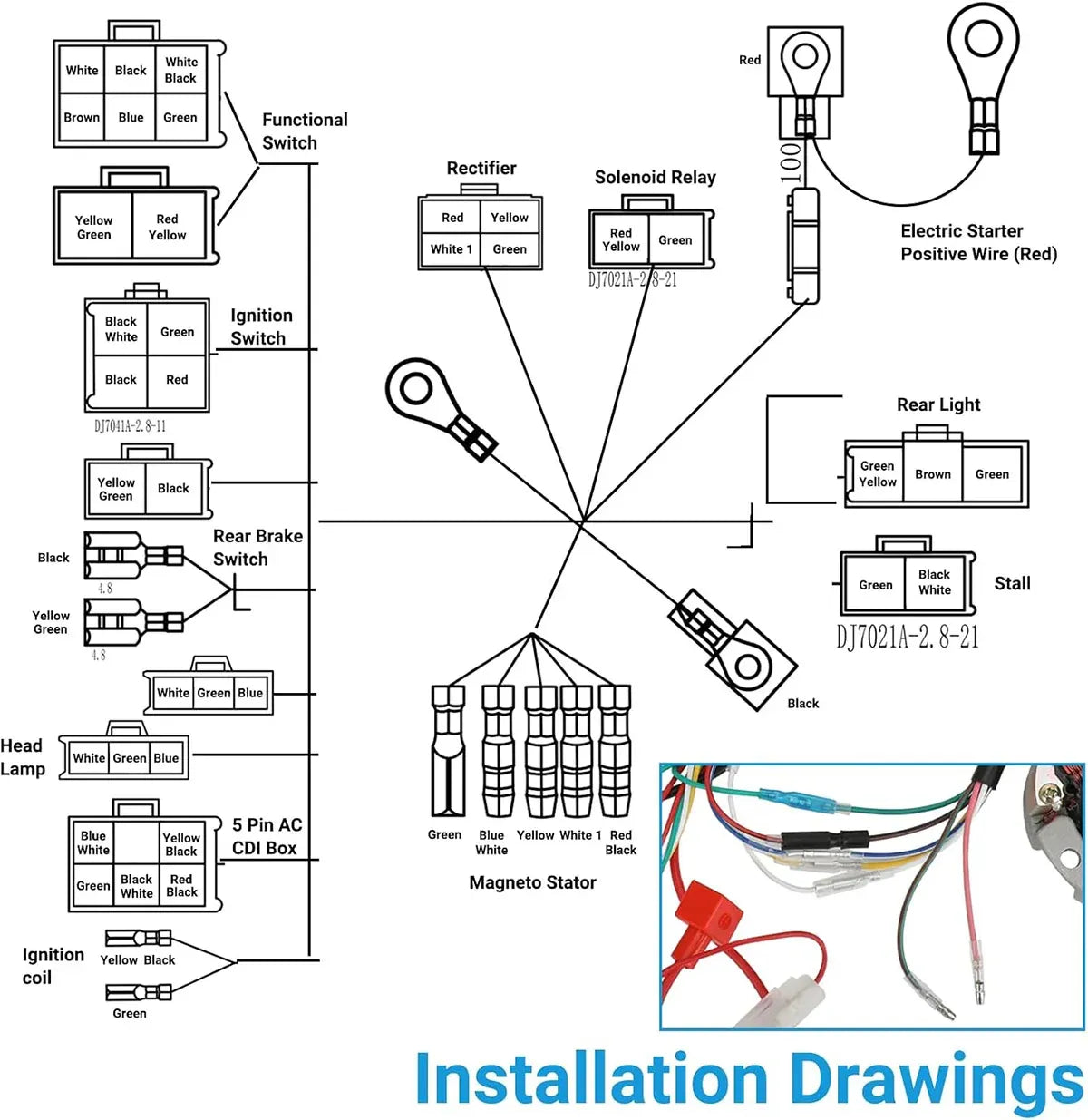

- Wire Colours:
- Red (+)
- Black (–)
- Green / Yellow / Blue / White (signal lines)
- Red (+)
- Operating Temperature Range: Approx. –40°C to 80°C (varies by component)
Package Includes

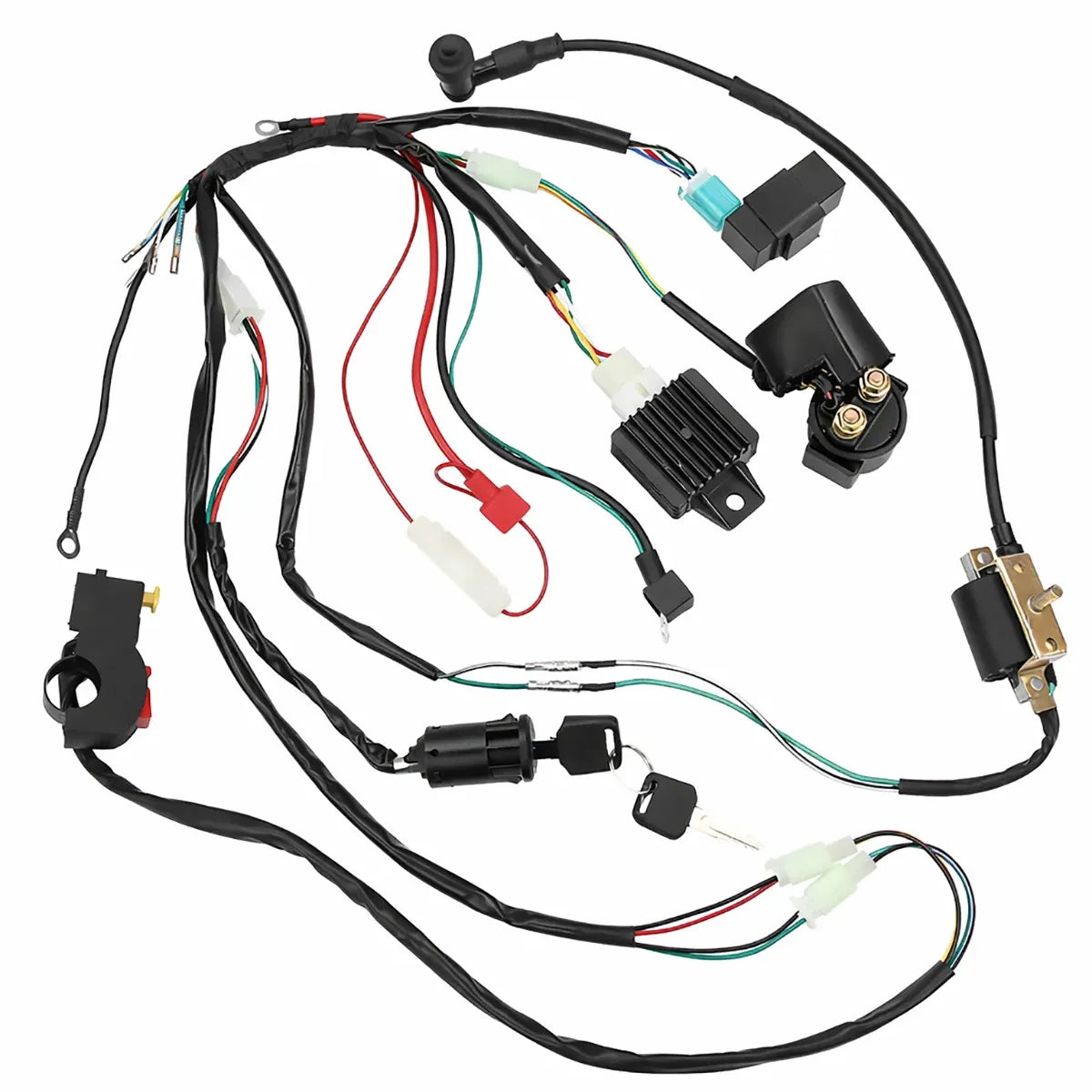

1 × Full vehicle wire ignition harness with all shown components
Note
- Not compatible with GY6 engines.
- Please confirm engine type and connector configuration before purchase.
- Professional installation is recommended.

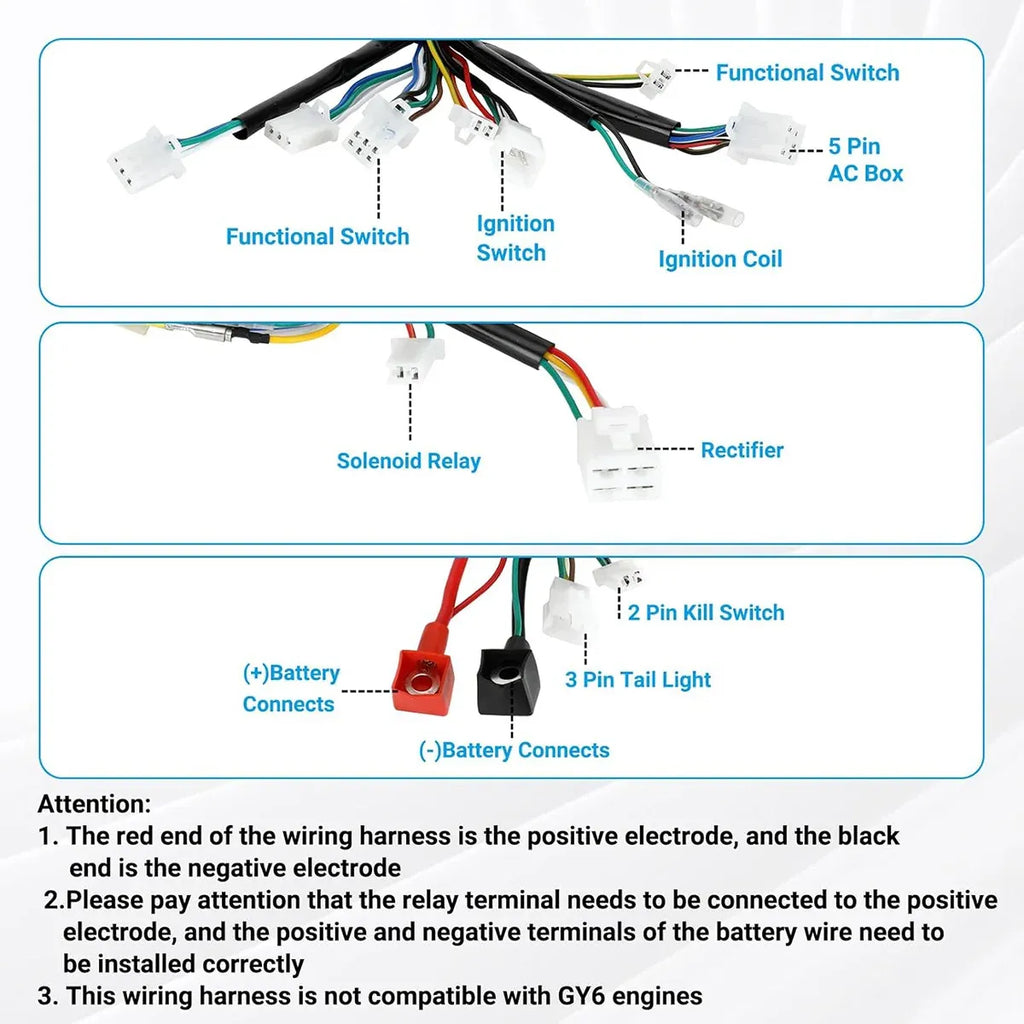

- Ensure correct battery polarity during installation.
- Relay terminal must connect to the positive battery terminal.
- Colour may vary slightly due to lighting and display settings.
